The Carefully Designed and Engineered 2500 Series PaddleFloTM Sweeps
Brock’s 2500 Series PaddleFlo Sweeps offer several practical advantages compared with traditional auger-style sweeps, especially for clean out, grain quality, and maintenance.
Bin Diameters
42-90 feet (12.8-27.4 m)
Wheel Reduction Ratio
120:1
Capacity Range
Up to 4,000 bushels (101.6 metric tons) per hour
Photos & Videos:
Features
Gentler Grain Handling
• Paddle design moves grain with less shear and impact.
• Reduces grain cracking, helping to maintain material integrity.
• Ideal for seed, specialty grains, and high-value crops.
Innovations
- Patent Pending design for chain tensioner/extender to improve ease of adjustments.
- A designed wheel drive for improved function and durability.
- Easy access to grease fittings and bearings.
- Extended sweep arm to reach the wall of the bin.

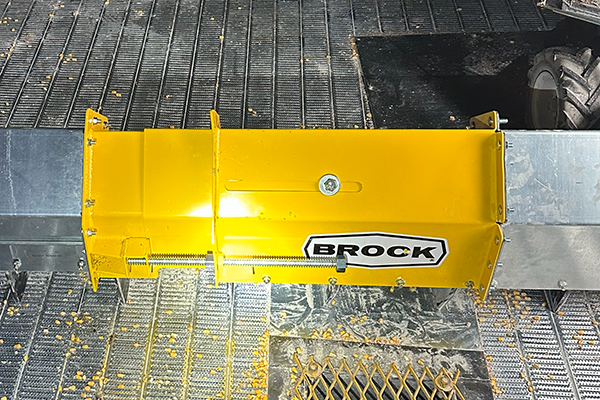

Tensioner/Extender (Patent Pending)
- Exclusive to Brock; easily tensions the paddle chain.
- Extend length of sweep arm, up to 12 inches (305 mm) of total adjustment.

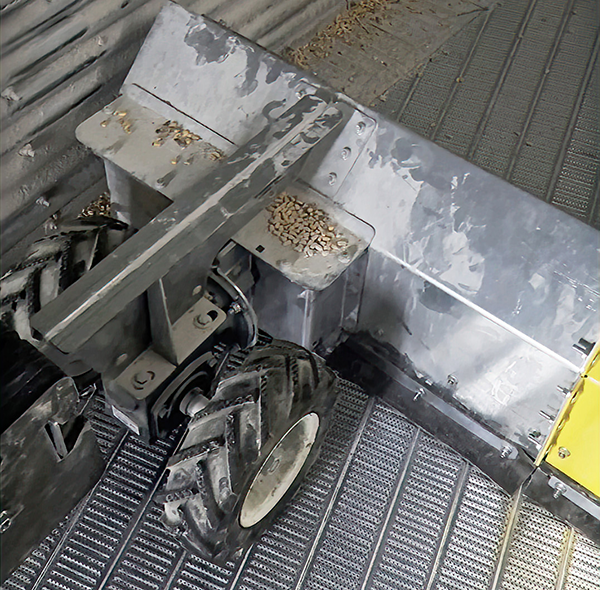

Tractor Drive
- Not driven by an exterior motor.
- Larger units are equipped with multiple drives, while smaller units will operate with a single drive.
- Rugged, foam-filled tires for durability.
- Weight Plates help keep sweep end and center firmly on the floor.
Effective Bin Clean-Out and Longer Equipment Life

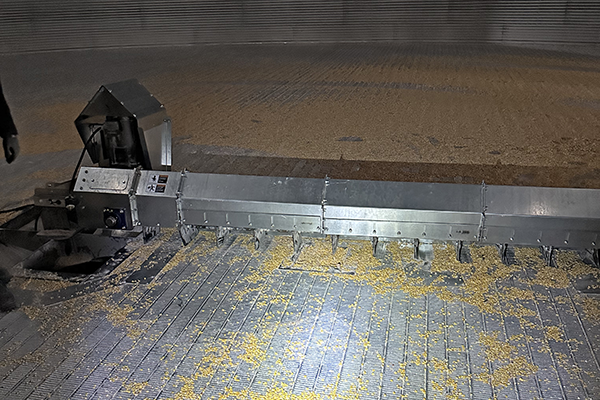

Effective Bin Clean-Out
- Efficiently moves residual grain toward the center sump.
- Helps achieve a cleaner bin floor, reducing leftover grain.
- Adjustable Back Plate can be positioned closer to the floor to reduce grain pressure on the rubber scraper.
- Reduced dust contamination for better visibility during sweep operation.
- Supports better sanitation and pest control.
Longer Equipment Life
- Less wear from abrasion.
- Greaseable sealed bearings.
- Reduced RPM drive wheel for reduced wheel tread wear.
- USA Manufactured gear box.
Reduced Maintenance/Simplified Design
- No auger flighting to wear, bend, or break.
- Minimal chain adjustments.
Specifications
2500 Series Power Sweep
| Unload Capacity* | ||
|---|---|---|
| Up to 4,000 bph (101.6mtph) |
Literature
Brock Solid 2500 Series PaddleFlo™ Sweeps BR-2406/202601 (1.09MB)
